The modern way of visual 3D work instructions. Use Dyvixion to create and view all kind of assembly instructions, work instructions and service procedures. Even directly on the HMI.
Crank up machine productivity. (OEE) Let operators perform better using real-time visual 3D event detection and available solutions / instructions. Available as HMI plug-in or stand-alone.
Simple. Modular. Flexible. Create next level procedures, manuals and complete Step-by-Step documentation in 3D with animation support. Extremely fast!
- Camera position
- Visibility / highlights of parts (example on the left)
- Part positions / rotations
- Icons as warning signs or tools
- Description with additional referral links
Efficient sales, consistent mechanical assembly and servicing compliance. The modern way for 3D configurations, documentation and manuals.
Crank up productivity. (OEE) Let machine operators perform better using a digital twin with real-time event detection and available solutions / manuals.
Simple. Modular. Flexible. Create next level procedures, manuals and all Step-by-Step documentation in 3D. With animation support. Extremely fast!
The most important part of any work instruction software is that it must be crystal clear. No discussion. This clarity can be achieved with nothing better than a real-time updating 3D viewport. Combined with step-based visual marks it gives the ultimate experience and will significantly reduce the need of text.
What if we have no traditional instruction manuals? But instead, more short interactive step-by-step lists that can be used for specific parts of the task? It will result in a modular structure of instructions. If there is an update or a change, only that specific short instruction list needs an update. How easy is that?
Using a modular work instruction structure is extremely flexible. The short step-based instruction lists can be created by many different experts who are excellent at doing their own thing. Duplicate, insert, or change a step order inside the step lists. Simultaneous teamwork has never been so easy.
It’s essential to store the digital instructions in a safe location. The 3d models in the library are stored in a secret, centralized location which can easily accessed inside the Dyvixion products. The models can be locally loaded into the machines, so they can always be accessed, even if there is no network connection.
By using central and modular step lists, expansion is infinite. Create (dis)assembly instructions, error solving solutions, checklists, and trainings once, and employ them on an infinite number of machines, configurations, and stand alone versions. Work smarter, not harder.
Use your existing 3D Models from the powerful DCS (Digital Centralized Sources) library. With the easy drag-and-drop 3D configurator it's possible to:
- Choose the right revision directly from the 3D library
- Create different configurations superfast
- Save as lightweight small config files
- Reload and look from every angle
with the preferred depth of field settings
- Export visuals as images
- Compatible with desktop and mobile screenformats
- Modular structure
- Interactive effects
- Multi-layer USP visuals
Speed up step-by-step processes and increase the efficiency. Prevent operator errors due to incomplete or outdated manuals. With Dyvixion you can:
- Increase overall equipment effectiveness (OEE)
- Update manuals / step lists from one location
- Visually walk through step-by-step procedures
- Quickly locate and solve machine events
- Decrease workfloor accidents
Store the knowledge inside the machine instead of the operators. Decreasing the dependency on a specific operator means that even less experienced operators can achieve the same result as highly experienced operators.
- Realtime interactive 3D environment
- Operator centric
- Clear and uniform work instructions
- Ability to grow solution lists evolving with the machine
- Monitor the machine in real-time from the HMI or stand-alone version
The Creator is part of the product Dyvixion | Core.
It is used by creators to add or update:
- Steps and step-lists
- Events (when connected with a machine / system)
The Viewer is used by end-users such as:
- Sales representatives - presentations
- Technicians - service / maintenance
- Assembly workers - units / modules
- Machine operators - HMI Plug-in
- Trainees - e-learning
💡 The viewer is included in every product
Dyvixion is the perfect tool to create modern work instructions and manuals for the smart industry. Visual communication based on the original 3D models and the possibility to add a description. Also tools and symbols can be added to a specific step from the built-in library. Superfast. Just like a traditional manual, but in a full interactive 3D environment.
This digitalization gives the ability to add or change things over time. And it' s all stored safely in one DCS (Digital Central Source).

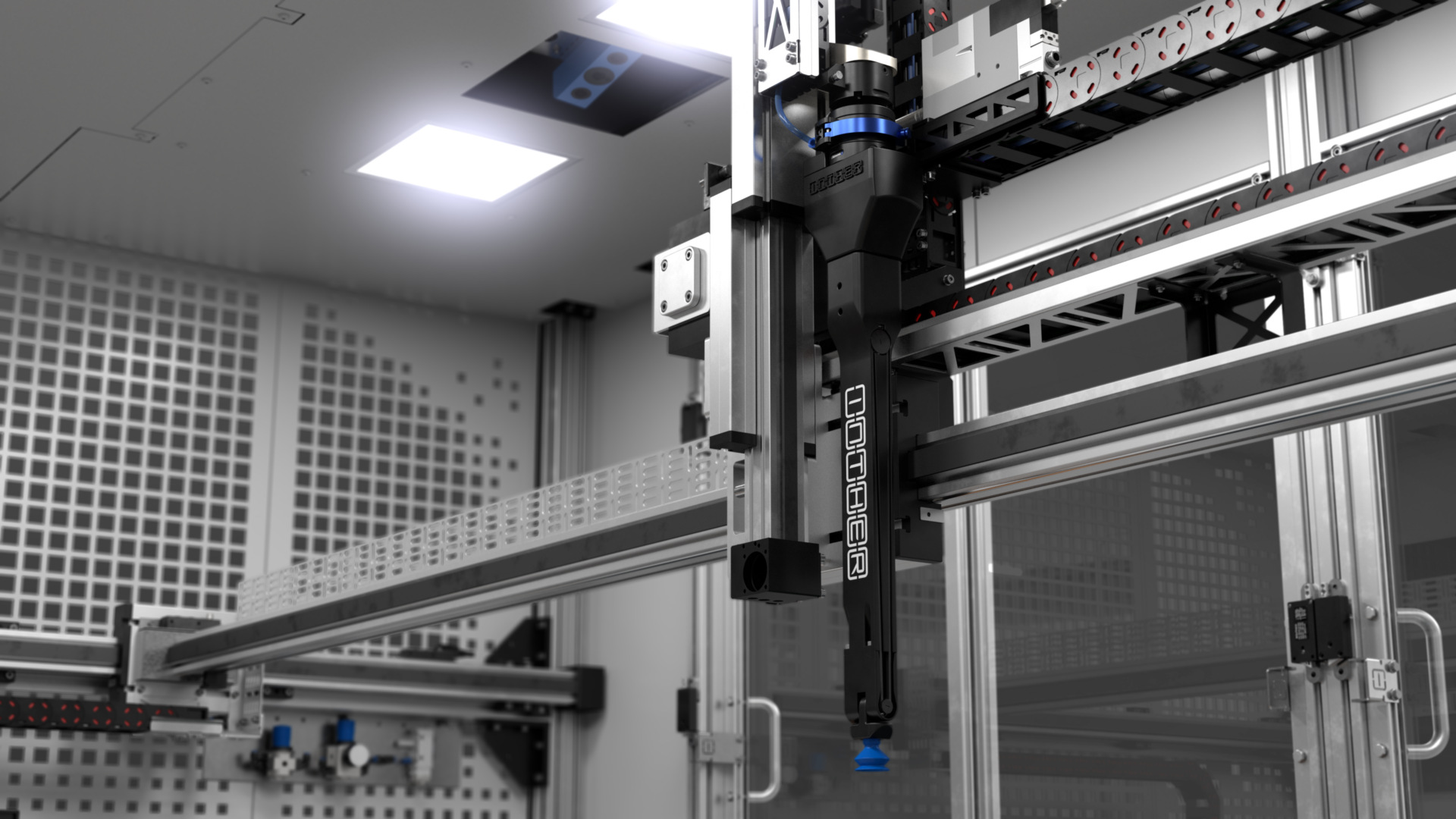

The Gripper shown here is intellectual property from Tembo Group. It's part of a rotary assembly head. The complete rotary head is available in our Dyvixion 3D-demo application to demonstrate how easy manuals can be created and how clear it is for mechanics to work with these visual 3D instructions
Light up a section, add text or link to a .pdf file.
Or give a basic overview of the system.
